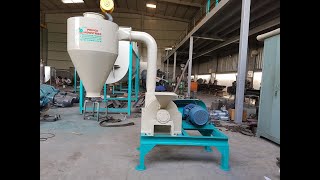

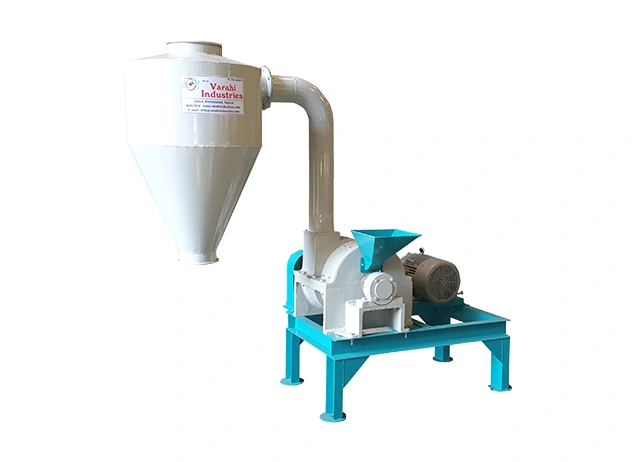

Mini Pulverizer

Mini Pulverizer

Mini Pulverizer is designed to convert various materials into fine powder by continuous impact of rotating hammers against grinding liners. Material is fed through a rotary feeder; intensive hammering breaks lumps into fine particles for controlled fineness.

An air stream carries ground material to the outlet. Oversize is returned via the whizzer for regrinding, while a fan conveys classified product to a cyclone collector. A three-way connection to a dust collector ensures clean, dust-free operation.

Note on Miracle/Hammer Mill: Ideal for high production with slightly lower achievable fineness than a pulverizer. A perforated liner in the lower half of the chamber performs classification—no whizzer required.

Enquire Now

Working Principle

Range & Specifications

Model Motor (HP) RPM (Machine) Fineness (Mesh) Output Range (Kg/Hr)
MVP-12 7.5 2800–3500 100–300 20–40
MVP-16 10 2800–3500 100–300 30–60
MVP-20 10–15 2200 75–300 50–100
MVP-25 20–30 2000 75–300 80–150

All data are nominal and may vary with material properties and operating conditions.

Major Components

  • Main Body: CI construction with replaceable liners; metal trap for heavy foreign matter.
  • Feeder: Automatic variable-speed star feeder for controlled feed.
  • Rotor: Thick plate rotor with hinged hammers; heavy-duty bearings.
  • Whizzer: Conical classifier with adjustable blades (100–300 mesh).
  • Blower: Heavy-duty, long-life bolted blades; easily replaceable.
  • Cyclone Collector: Efficient separation of powder from the air stream.

Key Benefits

  • High grinding efficiency for small-scale production
  • Uniform particle size control with adjustable whizzer
  • Dust-free operation with cyclone & dust collector
  • Low maintenance—replaceable hammers & liners
  • Handles a wide range of materials

Use of Mini Pulverizer

Chemical

Pigments, dyes, intermediates, organic compounds

Agriculture

Spices, guar gum, flour, turmeric, herbal powders

Minerals

Calcite, coal, limestone, china clay, dolomite, gypsum

Metal

CI powder, ferro alloys, zinc dross, brass dross

Other

Pesticides, prawn feed, carbon black, silica

Impex Pulverizer Applications

Chemical

Pigments, intermediates, dyes, organics

Agriculture

Spices, guar, flour, turmeric, herbal powders, prawn feed

Minerals

Bauxite, calcite, coal, limestone, soapstone, clay, dolomite, gypsum, marble, POP

Metals

CI powder, ferro alloys, zinc dross, brass dross

Other

Pesticides, insecticides, precipitated silica, carbon black
