Ice Crusher

Ice Crusher

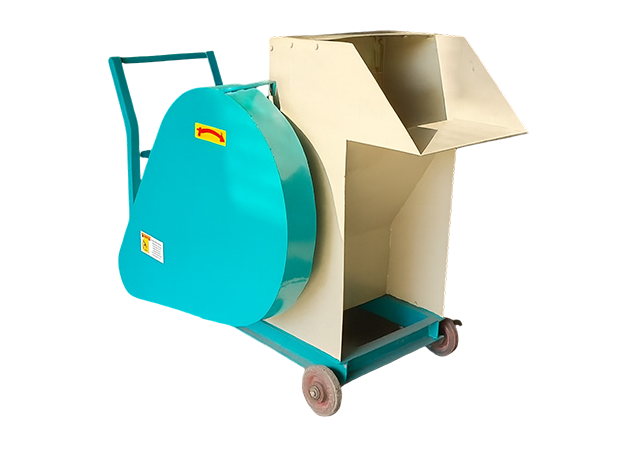

Varahi Industries’ Ice Crusher efficiently breaks large ice slabs into smaller pieces ranging from 50 mm to 10 mm—ideal for chemical processing, food preservation, and industrial cooling. The machine delivers high production rates while minimizing labor and handling time.

Ice slabs are fed from the top; rotating pointed spikes impact the ice against a serrated fixed plate to crush it. The crushed ice falls to the collection area ready for use. Throughput depends on feeding rate and lifting speed.

Enquire Now

Working Principle

Standard Models & Specifications

Model Ice Size (mm) Production (Ton/hr) Motor (HP)
TIB-20 50–10 3–10 2
TIB-30 50–10 10–20 3
TIB-60 50–10 75–100 10

Motor power & production rates depend on ice properties and operating parameters. Data are nominal and may vary.

Design & Construction

  • Rotating Drum: Equally spaced pointed spikes welded around the drum.
  • Drive System: Heavy-duty bearings; belt & pulley drive from electric motor.
  • Machine Body: MS sheet fabrication mounted on sturdy C-channel frame.
  • Mobility: Castor wheels for easy movement (TIB-20 and similar).

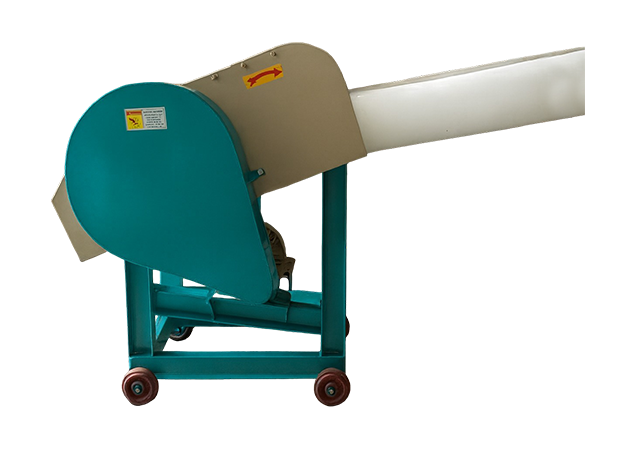

  • Direct Loading: TIB-30 allows direct loading of crushed ice into vessels to avoid manual handling.
  • High-Capacity: TIB-60 handles full slabs for maximum production.

Why Choose This Crusher

  • High throughput with consistent piece size (50–10 mm)
  • Reduced labor & safer handling
  • Robust, low-maintenance construction
  • Simple operation & reliable performance

Applications

Food & Beverage Industry

Ice preparation and storage

Chemical Processing

Reaction cooling & temperature control

Industrial Applications

Preservation & process cooling
