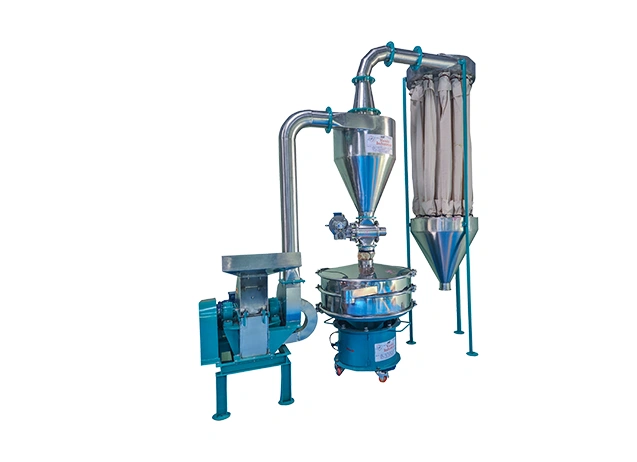

Chili Grinder (Hammer Mill)

Chili Grinder (Hammer Mill)

Varahi Industries’ Chili Grinder (Hammer Mill) is a high-performance machine for size reduction of various materials—especially chilies and spices. Operating on a principle similar to an Impex Pulverizer, it delivers consistent and efficient grinding.

A perforated liner fitted in the lower half of the grinding chamber classifies material to the required mesh size; hole diameter and pitch are selected as per target fineness. No whizzer classifier is required—the liner itself provides separation.

Working Principle

Main Body

  • Grinding chamber fabricated from M.S. or S.S. for durability and long life.
  • Replaceable liners/plates in different profiles to suit various materials.
  • Built-in metal trap captures heavy foreign particles to prevent damage.

Rotor Assembly

  • Heavy-duty steel plate rotor; dynamically balanced for smooth running.
  • Swinging hammers hinged on the rotor to prevent breakage and allow continuous duty.
  • Main shaft mounted on heavy-duty bearings in robust bearing blocks.

Blower

  • High-efficiency blower with long-life bolted blades for air circulation & product conveying.
  • Blades are easily replaceable to reduce maintenance downtime.

Cyclone Collector

  • Engineered for superior dust collection and efficient fine-particle separation.
  • Ensures a cleaner work environment and better product recovery.

Available Models

Model (Inch) Motor (HP)
5" × 10" 3
6" × 12" 5
8" × 14" 10
10" × 16" 15
10" × 20" 20
12" × 20" 30
22" × 14" 15

Perforation size/pitch and liner profile are selected based on target fineness and material characteristics.

Key Benefits
